EPOC+
A revolutionary Neuroheadset and Scientific Contextual EEG offering high resolution and full spatial resolution.
BUY NOW

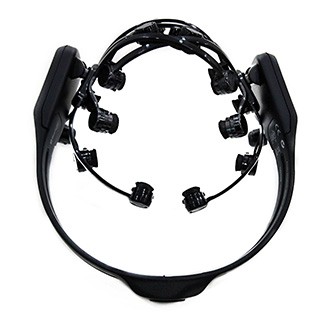

A high resolution, multi-channel EEG system
The EMOTIV Epoc+ features 14 EEG channels plus 2 reference channels and offers optimal positioning for accurate spatial resolution.
The most credible and cost effective mobile EEG device on the market.
- Easy to fit and flexible design
- Wireless and rechargeable
- Dense array spatial resolution ensuring ‘whole brain’ measurement
- Saline based wet sensors (no sticky gels)
- Lithium battery providing up to 12 hours of continuous use
- Windows, OSX, Android, and iOS compatible; subject to software and SDK compatibility
- Provides access to Raw EEG data with software subscription
- Access performance metrics, mental commands and facial expressions
Signals
- 14 channels: AF3, F7, F3, FC5, T7, P7, O1, O2, P8, T8, FC6, F4, F8, AF4
- References: In the CMS/DRL noise cancellation configuration P3/P4 locations
Signal resolution
- Sampling method: Sequential sampling. Single ADC
- Sampling rate: 128 SPS or 256 SPS* (2048 Hz internal)
- Resolution: 14 bits 1 LSB = 0.51μV ( 16 bit ADC, 2 bits instrumental noise floor discarded), or 16 bits*
- Bandwidth: 0.2 – 43Hz, digital notch filters at 50Hz and 60Hz
- Filtering: Built in digital 5th order Sinc filter
- Dynamic range (input referred): 8400μV(pp)
- Coupling mode: AC coupled
Connectivity
- Wireless: Bluetooth® Smart
- Proprietary wireless: 2.4GHz band
Power
- Battery: Internal Lithium Polymer battery 640mAh
- Battery life: up to 12 hours using proprietary wirelss, up to 6 hours using
- Bluetooth® Smart
The EMOTIV EPOC+ neuroheadset connects wirelessly to PCs, tablets, and smartphones running Windows, MAC OSX, Android or iOS.
Note: Platform support is also subject to software and SDK compatibility.
Windows system requirements
- Intel Pentium G (or equivalent)
- Microsoft Windows 7, Windows 8, or Windows 10
- 2GB RAM
- 200MB available disk space.
- USB 2.0 ports (depending on the number of neuroheadsets you wish to use simultaneously)
Mac system requirements
- MAC OS X (10.11.x, 10.12.x )
- Intel-based Macintosh
- 2GB RAM
- Hard disk with 500Mb available
- USB 2.0 ports (depending on the number of neuroheadsets you wish to use simultaneously)
Android system requirements
- A device that has Bluetooth ® SMART functionality. Most modern high-end devices have this ability. Alternatively Android support is also provided for devices which support
- USB-OTG functions implementing HID host Mode, using an adapter cable and our standard USB transceiver. Check the documentation and specification of you device.
- OS: Android 4.3.4+
- Sample Devices: Samsung Galaxy S3, Samsung Galaxy S4, Sony Xperia SP, Sony Experia Z
iOS system requirements
- iOS 9.0 and higher
- Compatible with iPhone 5 and above, iPod Touch 6, iPad 3 or later, iPad mini.
