Compare Emotiv’s Devices

Find the device that fits your needs.

Flex 2

Technical Specifications

Sensor Count

Sensor Location

Resolution

LSB Resolution

Dynamic Range

Sensor Technology

Motion Sensor

Proprietary USB receiver

Connectivity

Battery Life

Reference

Sample Rate

Contact Quality

Frequency Response

Detections

Facial Expressions

Emotional States

Mental Commands

Configurable Options

User Configurable Options:

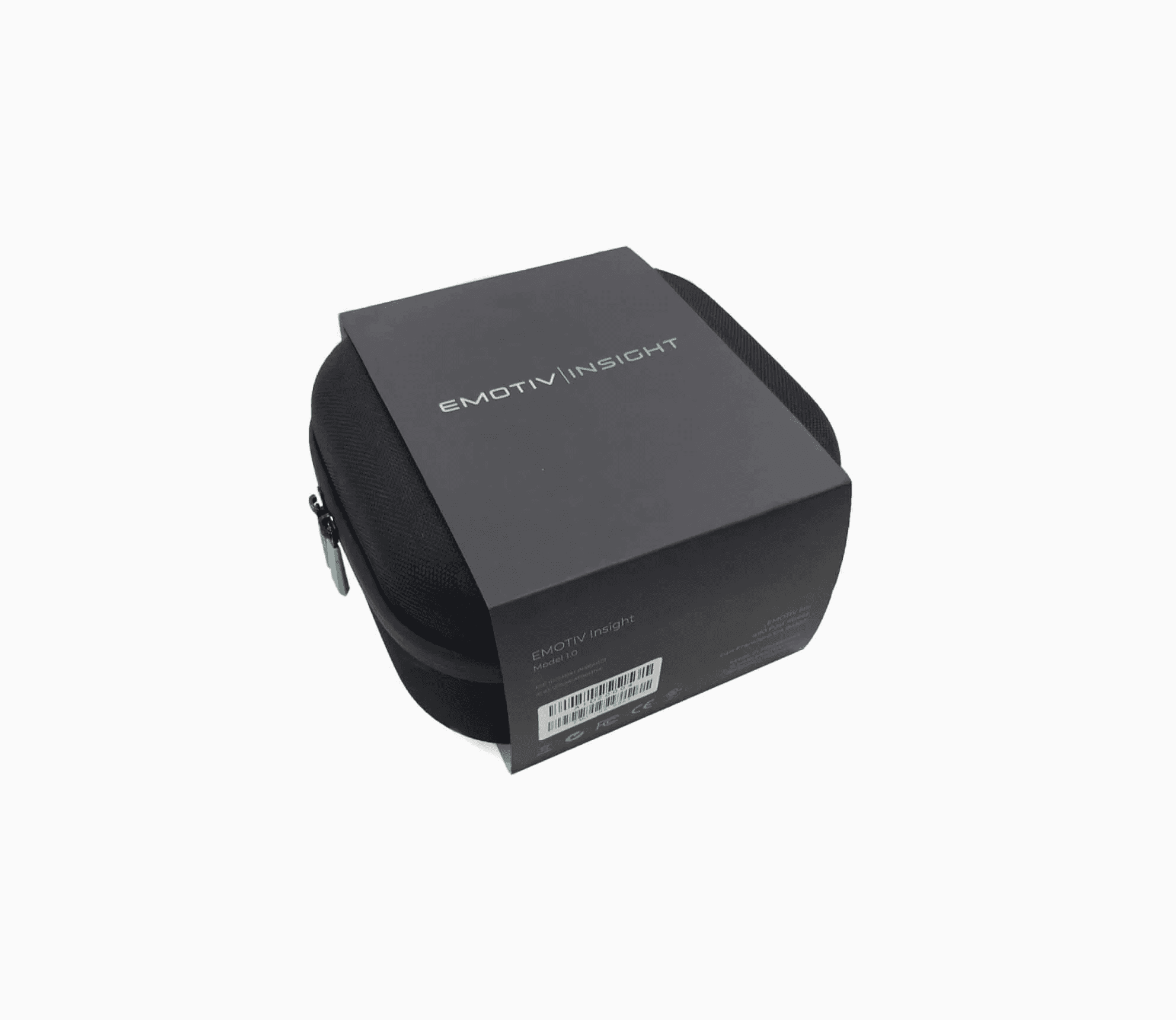

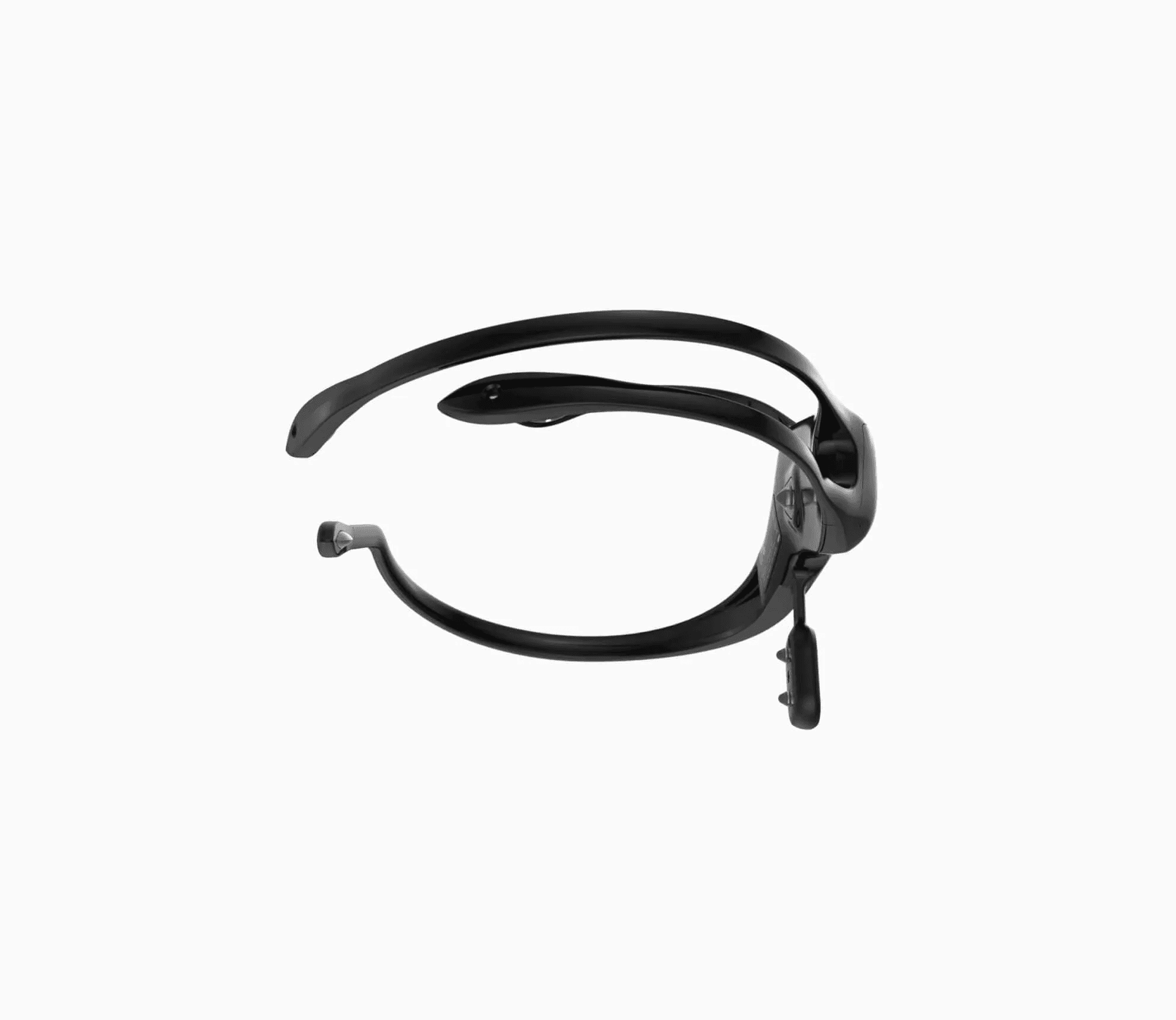

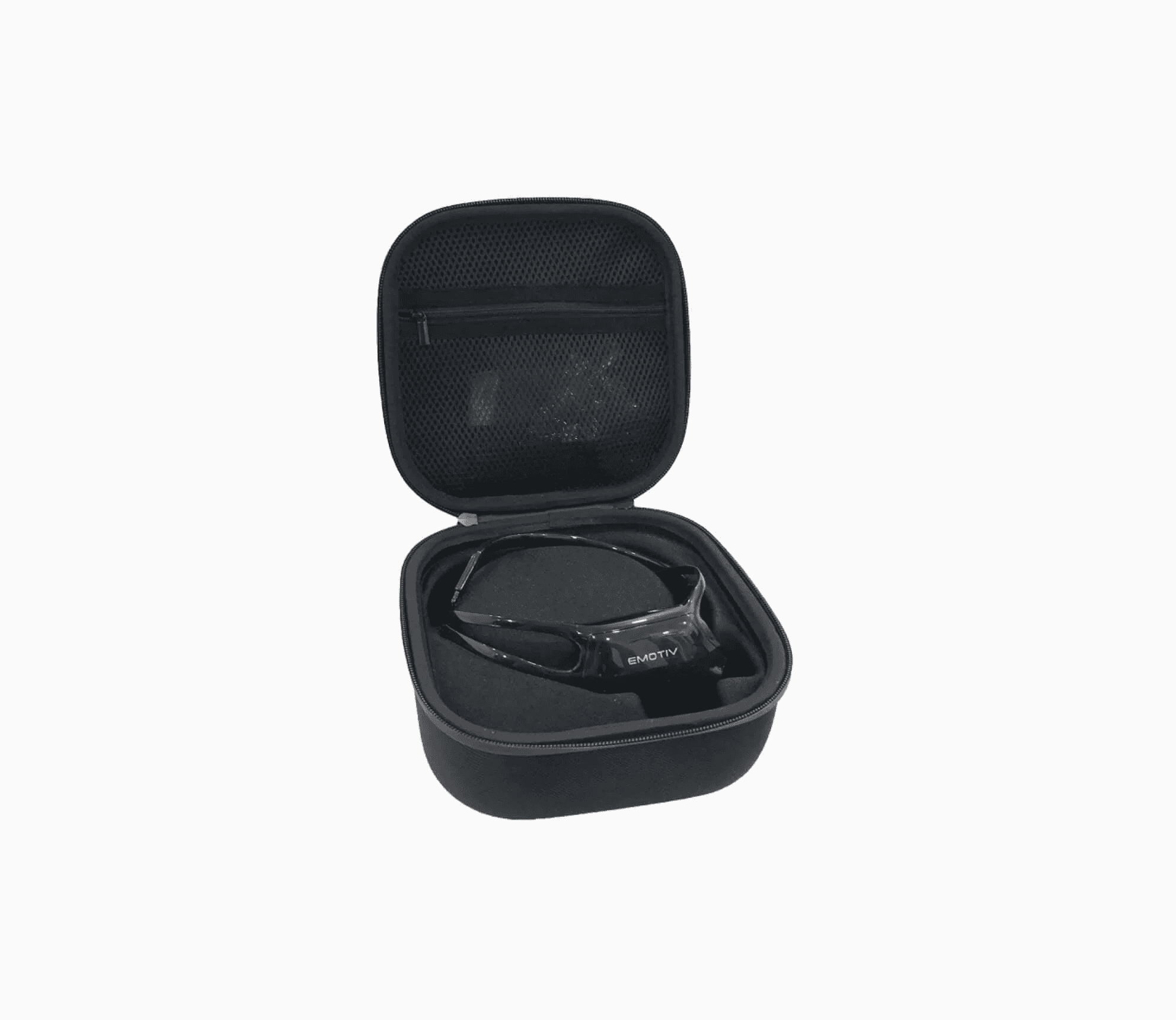

Insight

Technical Specifications

5 (+2 references)

AF3, AF4, T7, T8, Pz

16 bits per channel

0.1275µV (16 bits mode)

±4.17 mV (8400 µV pp)

Long life semi-dry polymer

9 axis sensor (4 quaternions, 3x accelerometer, 3x magnetometer)

-

Bluetooth® Low Energy

BT5

Extender Support – future feature

-

Up to 20 hours

CMS/DRL references on left mastoid process

2048 internal downsampled to 128 SPS

Real-time CQ monitor (patented)

0.16 – 43 Hz

Detections

1. Blink

2. Wink Left/Right

3. Furrow (frown)

4. Raise Brow (surprise)

5. Smile

6. Clench Teeth (grimace)

7. Clench Teeth (grimace)

8. Laugh

9. Smirk Left/Right

1. Excitement

2. Long term excitement

3. Stress

4. Engagement

5. Relaxation

6. Interest/Affinity

7. Focus

Neutral + up to 4 pretrained items from a list of 13 labels:

Push

Pull

Lift

Drop

Left

Right

Rotate clockwise

Rotate anti-clockwise

Rotate forwards

Rotate backwards

Rotate left

Rotate right

Disappear

Configurable Options

None

Motion configuration 32/64Hz

Position of Control Box (at Iz or Cz)

Insight

Technical Specifications

5 (+2 references)

Sensor Count

AF3, AF4, T7, T8, Pz

Sensor Location

16 bits per channel

Resolution

0.1275µV (16 bits mode)

LSB Resolution

±4.17 mV (8400 µV pp)

Dynamic Range

Long life semi-dry polymer

Sensor Technology

9 axis sensor (4 quaternions, 3x accelerometer, 3x magnetometer)

Motion Sensor

-

Proprietary USB receiver

Bluetooth® Low Energy

BT5

Extender Support – future feature

-

Connectivity

Up to 20 hours

Battery Life

CMS/DRL references on left mastoid process

Reference

2048 internal downsampled to 128 SPS

Sample Rate

Real-time CQ monitor (patented)

Contact Quality

Frequency Response

0.16 – 43 Hz

Detections

Facial Expressions

1. Blink

2. Wink Left/Right

3. Look Left/Right

4. Furrow (frown)

5. Raise Brow (surprise)

6. Smile

Emotional States

1. Excitement

2. Long term excitement

3. Stress

4. Engagement

5. Relaxation

6. Interest/Affinity

7. Focus

Mental Commands

Neutral + up to 4 pretrained items from a list of 13 labels:

Push

Pull

Lift

Drop

Left

Right

Rotate clockwise

Rotate anti-clockwise

Rotate forwards

Rotate backwards

Rotate left

Rotate right

Disappear

Configurable Options

User Configurable Options:

None

Insight

Technical Specifications

5 (+2 references)

Sensor Count

AF3, AF4, T7, T8, Pz

Sensor Location

16 bits per channel

Resolution

0.1275µV (16 bits mode)

LSB Resolution

±4.17 mV (8400 µV pp)

Dynamic Range

Long life semi-dry polymer

Sensor Technology

9 axis sensor (4 quaternions, 3x accelerometer, 3x magnetometer)

Motion Sensor

-

Proprietary USB receiver

Bluetooth® Low Energy

BT5

Extender Support – future feature

-

Connectivity

Up to 20 hours

Battery Life

CMS/DRL references on left mastoid process

Reference

2048 internal downsampled to 128 SPS

Sample Rate

Real-time CQ monitor (patented)

Contact Quality

Frequency Response

0.16 – 43 Hz

Detections

Facial Expressions

1. Blink

2. Wink Left/Right

3. Look Left/Right

4. Furrow (frown)

5. Raise Brow (surprise)

6. Smile

Emotional States

1. Excitement

2. Long term excitement

3. Stress

4. Engagement

5. Relaxation

6. Interest/Affinity

7. Focus

Mental Commands

Neutral + up to 4 pretrained items from a list of 13 labels:

Push

Pull

Lift

Drop

Left

Right

Rotate clockwise

Rotate anti-clockwise

Rotate forwards

Rotate backwards

Rotate left

Rotate right

Disappear

Configurable Options

User Configurable Options:

None

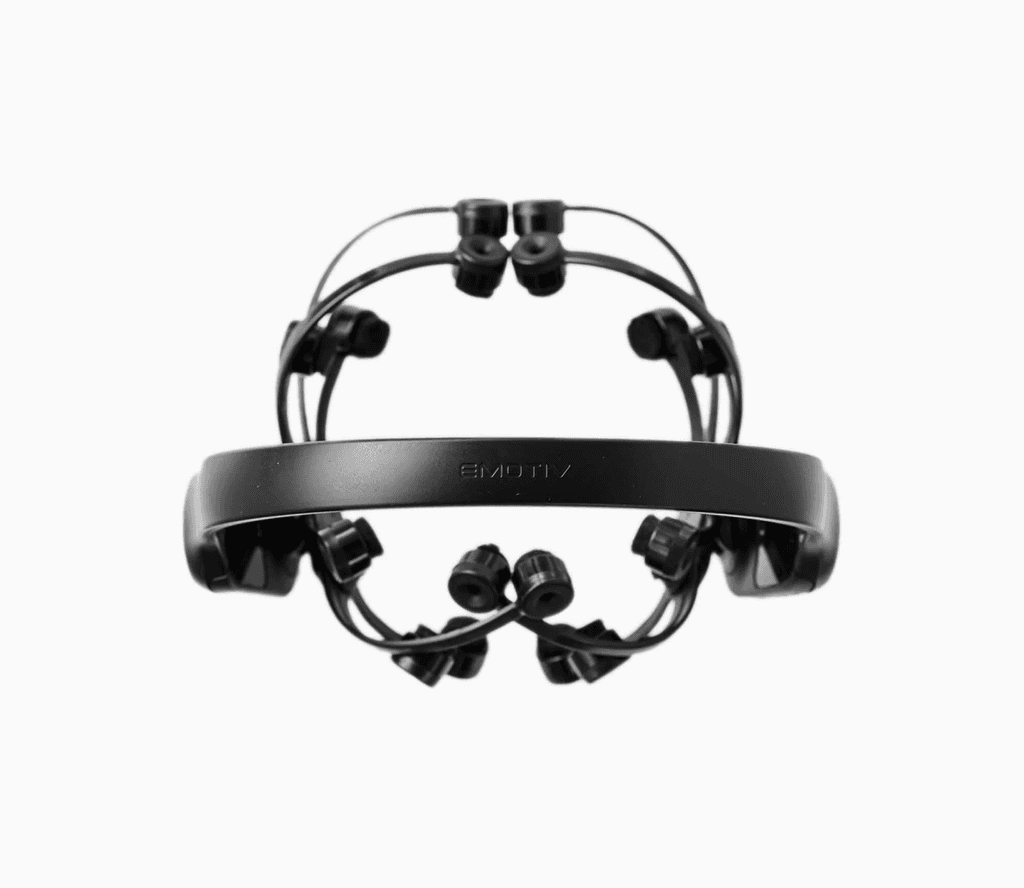

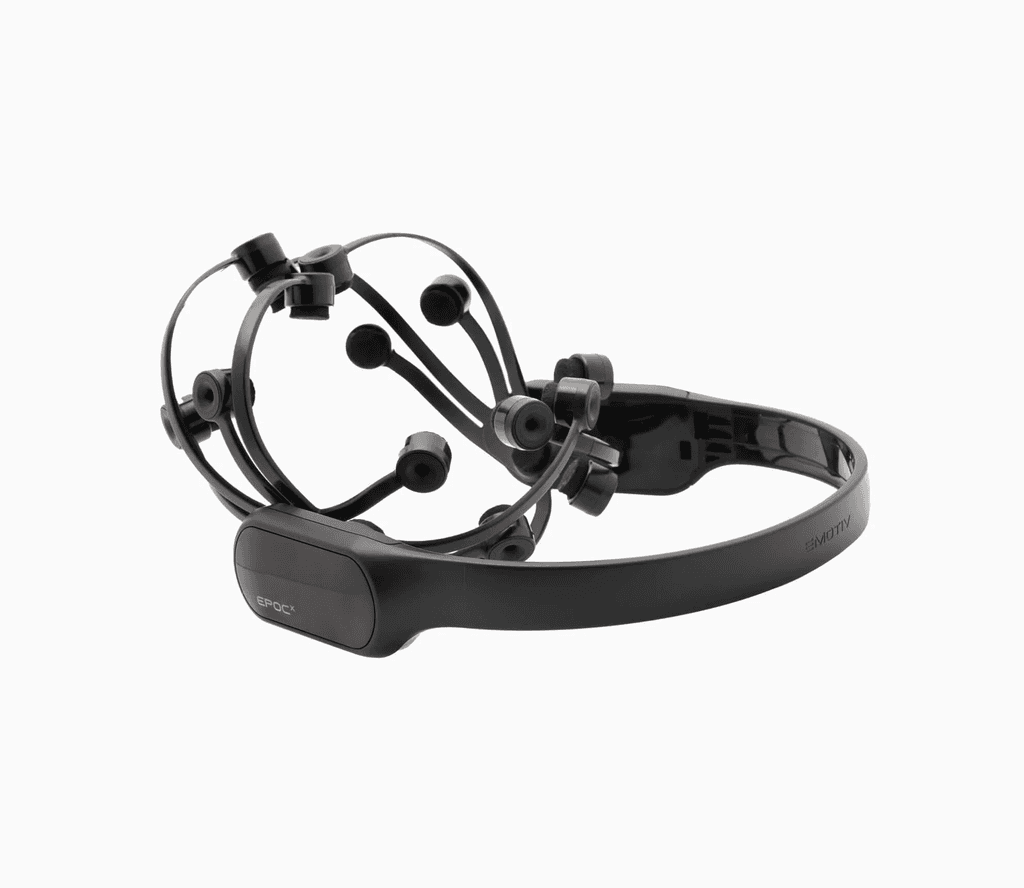

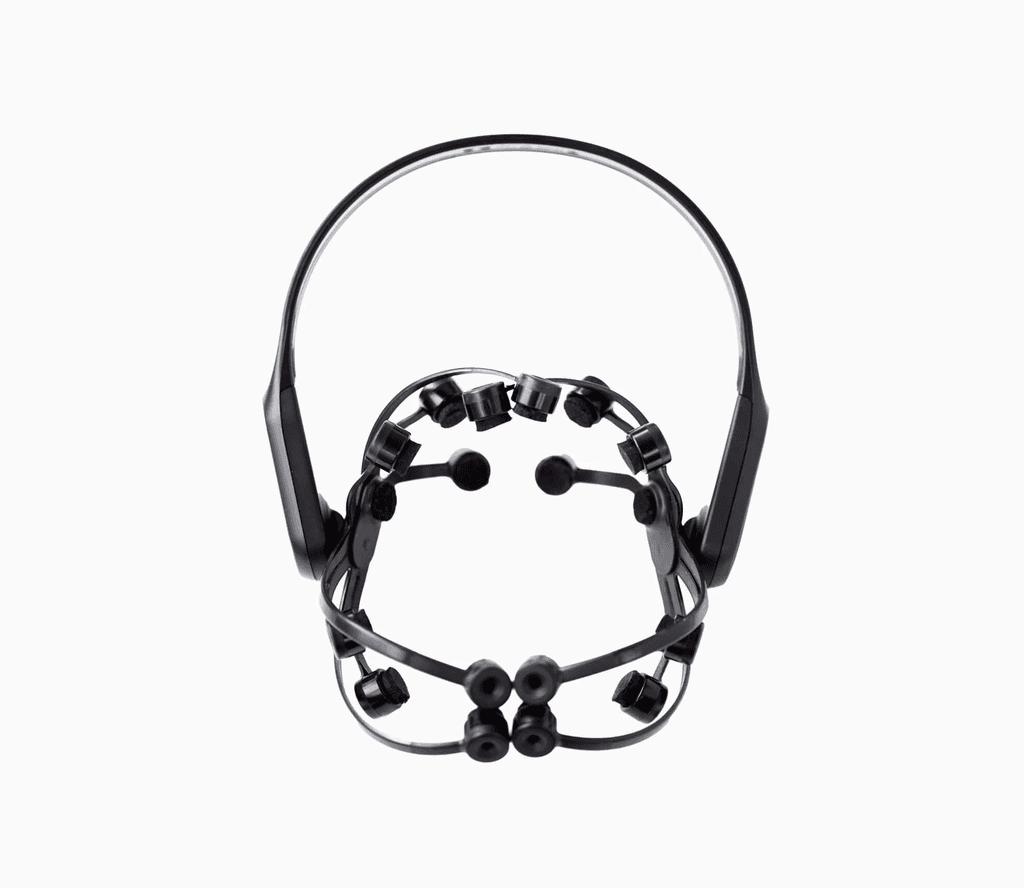

Epoc X

Technical Specifications

14 (+2 references)

AF3, AF4, F3, F4, FC5, FC6, F7, F8, T7, T8, P7, P8, O1, O2

14 bits or 16 bits per channel

0.51µV (14 bits mode), 0.1275µV (16 bits mode) (user configured)

±4.17 mV (8400 µV pp)

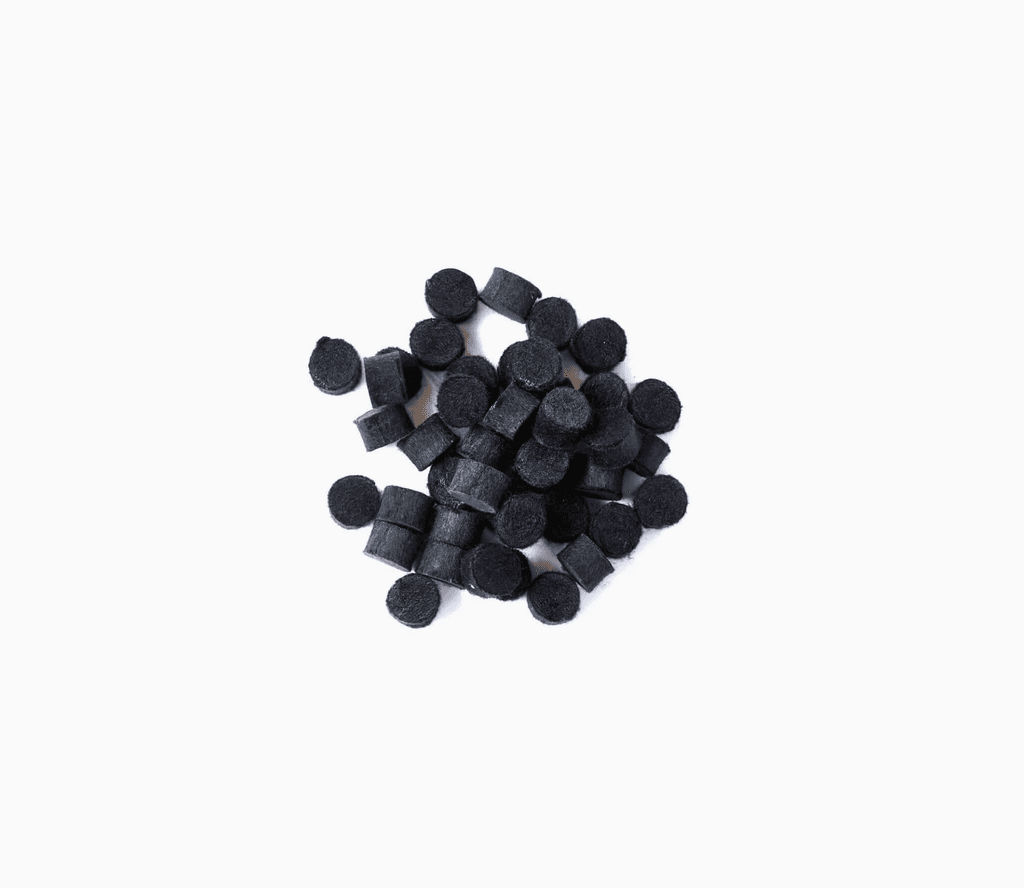

Saline soaked felt pads

9 axis sensor (4 quaternions, 3x accelerometer, 3x magnetometer)

2.4GHz band

Bluetooth® Low Energy

BT5 Ready

USB 2.0

-

Up to 9 hours

CMS/DRL references at P3/P4 or M1/M2 left/right mastoid process alternative

2048 internal downsampled to 256 SPS

Real-time CQ monitor (patented)

0.16 – 43 Hz

Detections

1. Blink

2. Wink Left/Right

3. Look Left/Right

4. Furrow (frown)

5. Raise Brow (surprise)

6. Smile

7. Clench Teeth (grimace)

8. Laugh

9. Smirk Left/Right

1. Excitement

2. Long term excitement

3. Stress

4. Engagement

5. Relaxation

6. Interest/Affinity

7. Focus

Neutral + up to 4 pretrained items from a list of 13 labels:

Push

Pull

Lift

Drop

Left

Right

Rotate clockwise

Rotate anti-clockwise

Rotate forwards

Rotate backwards

Rotate left

Rotate right

Disappear

Configurable Options

14 bits/16 bits voltage resolution

Enable/disable motion sensors (accelerometer, gyro, magnetometer)

Epoc X

Technical Specifications

14 (+2 references)

Sensor Count

AF3, AF4, F3, F4, FC5, FC6, F7, F8, T7, T8, P7, P8, O1, O2

Sensor Location

14 bits or 16 bits per channel

Resolution

0.51µV (14 bits mode), 0.1275µV (16 bits mode) (user configured)

LSB Resolution

±4.17 mV (8400 µV pp)

Dynamic Range

Saline soaked felt pads

Sensor Technology

9 axis sensor (4 quaternions, 3x accelerometer, 3x magnetometer)

Motion Sensor

2.4GHz band

Proprietary USB receiver

Bluetooth® Low Energy

BT5 Ready

USB 2.0

-

Connectivity

Up to 9 hours

Battery Life

CMS/DRL references at P3/P4 or M1/M2 left/right mastoid process alternative

Reference

2048 internal downsampled to 256 SPS

Sample Rate

Real-time CQ monitor (patented)

Contact Quality

Frequency Response

0.16 – 43 Hz

Detections

Facial Expressions

1. Blink

2. Wink Left/Right

3. Look Left/Right

4. Furrow (frown)

5. Raise Brow (surprise)

6. Smile

7. Clench Teeth (grimace)

8. Laugh

9. Smirk Left/Right

Emotional States

1. Excitement

2. Long term excitement

3. Stress

4. Engagement

5. Relaxation

6. Interest/Affinity

7. Focus

Mental Commandses

Neutral + up to 4 pretrained items from a list of 13 labels:

Push

Pull

Lift

Drop

Left

Right

Rotate clockwise

Rotate anti-clockwise

Rotate forwards

Rotate backwards

Rotate left

Rotate right

Disappear

Configurable Options

User Configurable Options:

14 bits/16 bits voltage resolution

Enable/disable motion sensors (accelerometer, gyro, magnetometer)

Epoc X

Technical Specifications

14 (+2 references)

Sensor Count

AF3, AF4, F3, F4, FC5, FC6, F7, F8, T7, T8, P7, P8, O1, O2

Sensor Location

14 bits or 16 bits per channel

Resolution

0.51µV (14 bits mode), 0.1275µV (16 bits mode) (user configured)

LSB Resolution

±4.17 mV (8400 µV pp)

Dynamic Range

Saline soaked felt pads

Sensor Technology

9 axis sensor (4 quaternions, 3x accelerometer, 3x magnetometer)

Motion Sensor

2.4GHz band

Proprietary USB receiver

Bluetooth® Low Energy

BT5 Ready

USB 2.0

-

Connectivity

Up to 9 hours

Battery Life

CMS/DRL references at P3/P4 or M1/M2 left/right mastoid process alternative

Reference

2048 internal downsampled to 256 SPS

Sample Rate

Real-time CQ monitor (patented)

Contact Quality

Frequency Response

0.16 – 43 Hz

Detections

Facial Expressions

1. Blink

2. Wink Left/Right

3. Look Left/Right

4. Furrow (frown)

5. Raise Brow (surprise)

6. Smile

7. Clench Teeth (grimace)

8. Laugh

9. Smirk Left/Right

Emotional States

1. Excitement

2. Long term excitement

3. Stress

4. Engagement

5. Relaxation

6. Interest/Affinity

7. Focus

Mental Commandses

Neutral + up to 4 pretrained items from a list of 13 labels:

Push

Pull

Lift

Drop

Left

Right

Rotate clockwise

Rotate anti-clockwise

Rotate forwards

Rotate backwards

Rotate left

Rotate right

Disappear

Configurable Options

User Configurable Options:

14 bits/16 bits voltage resolution

Enable/disable motion sensors (accelerometer, gyro, magnetometer)

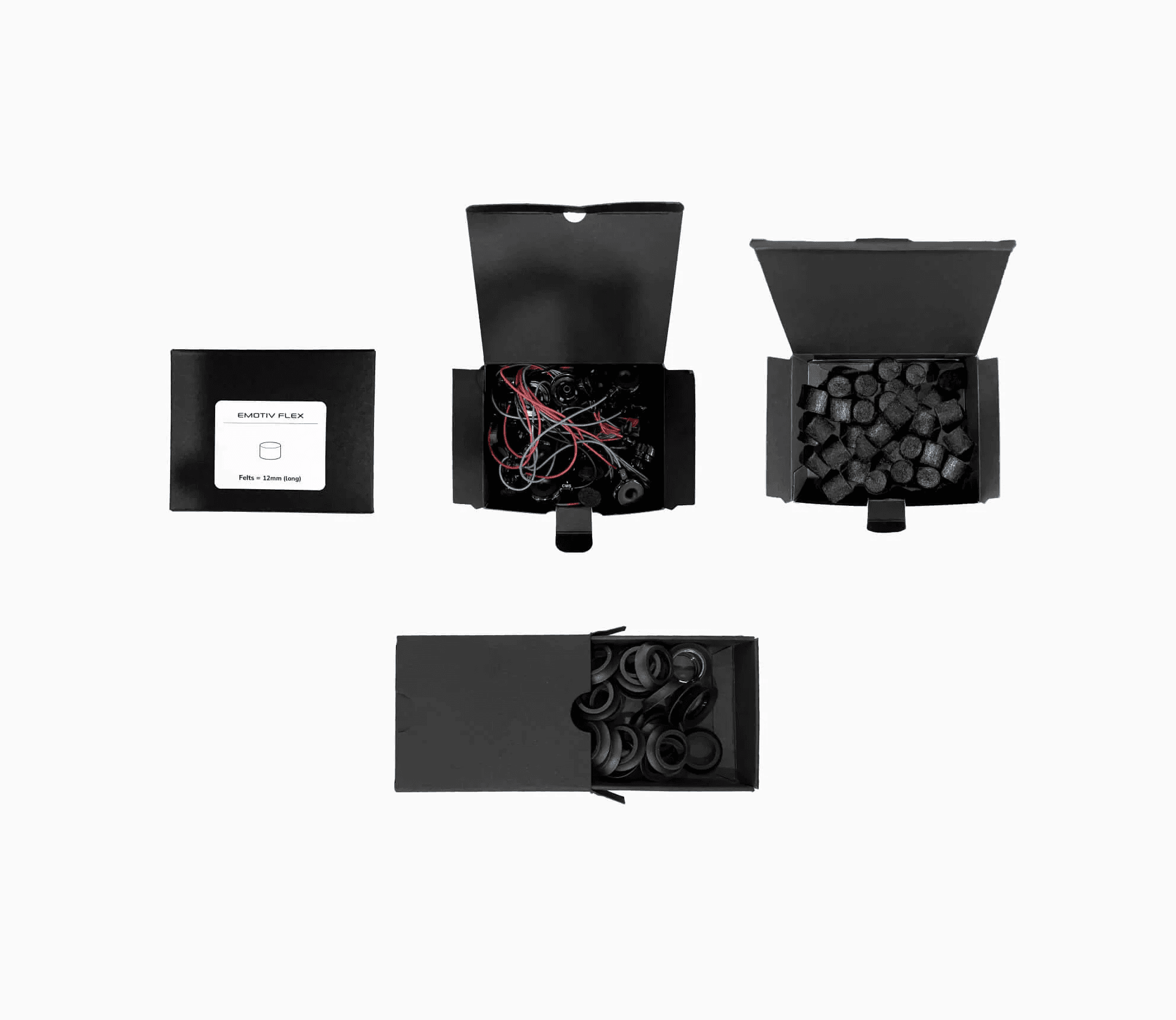

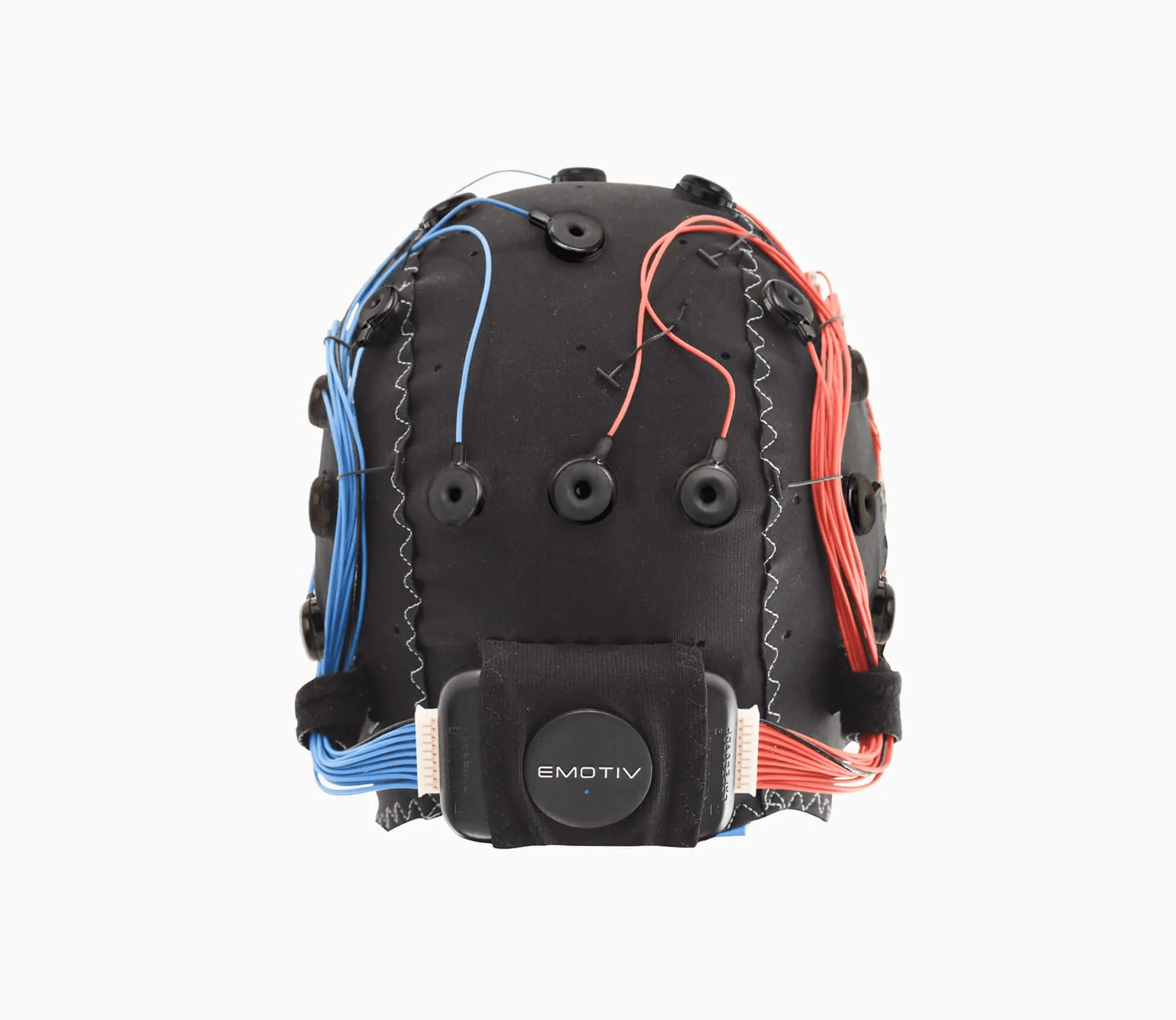

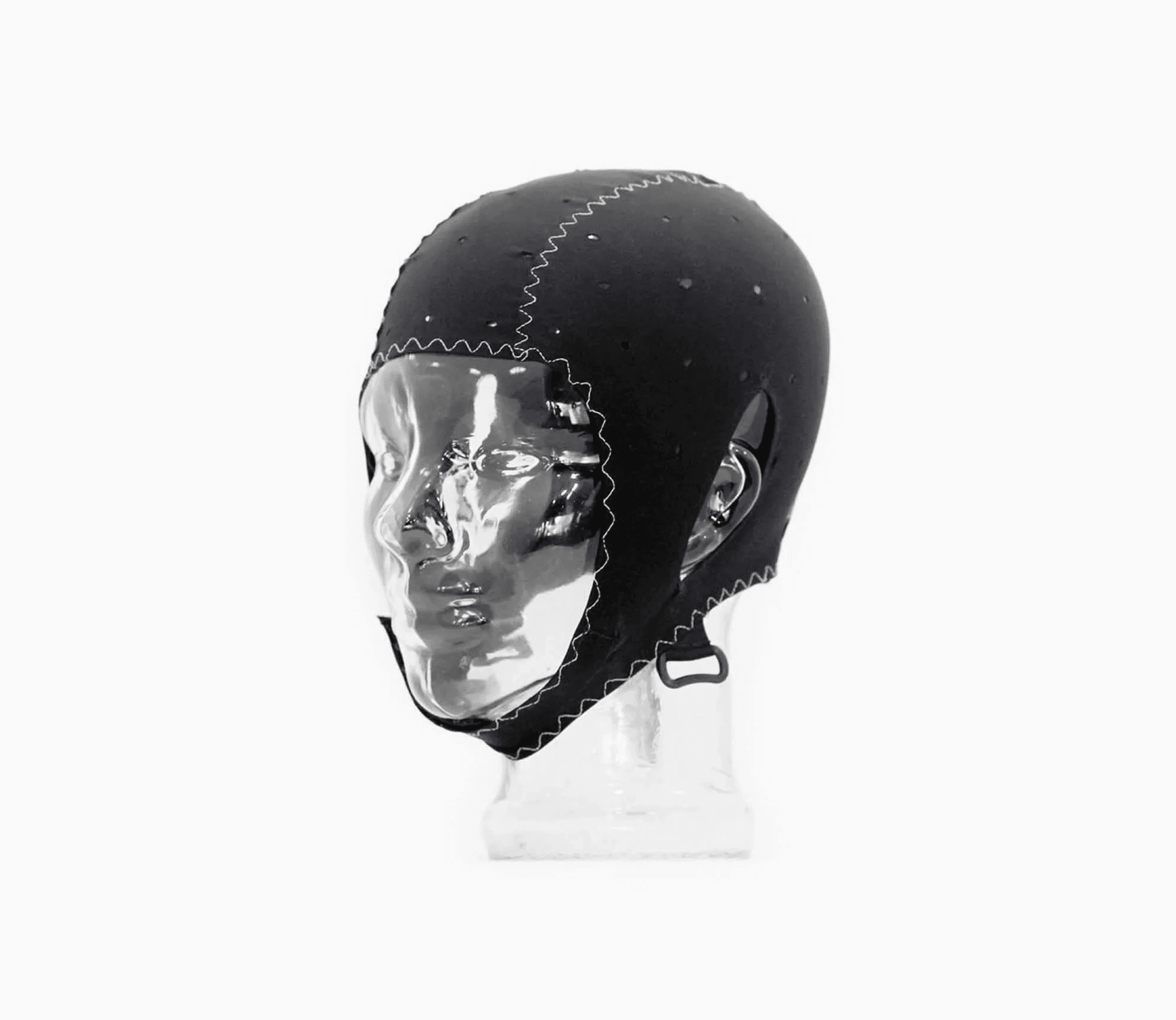

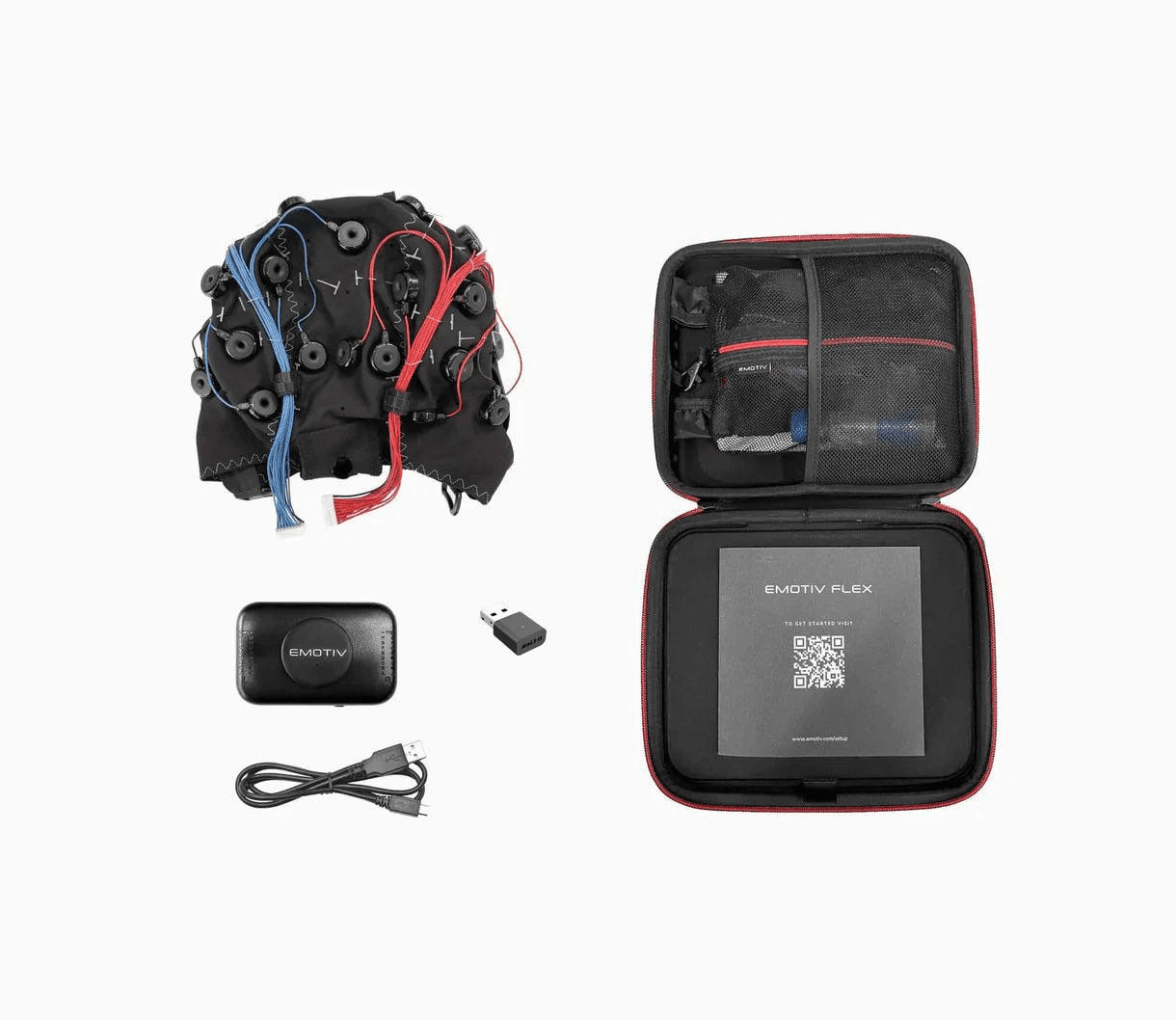

Flex 2

Technical Specifications

Up to 32 (+2 references)

Configurable in any 10-20 location

16 bits per channel

0.1275µV (16 bits mode)

±4.17 mV (8400 µV pp)

Saline OR Ag/AgCl + Gel

9 axis sensor (4 quaternions, 3x accelerometer, 3x magnetometer)

BLE Dongle included

Bluetooth® Low Energy

BT5.2 (BT6.3 hardware-ready)

USB-C (Bluetooth dongle, USB-A to USB-C adaptor included)

-

Up to 6 hours

CMS/DRL configurable in any 10-20 location or on ears (contains compatible ear clips for sensors – Gel model only)

2048 internal downsampled to 256 SPS

Real-time CQ monitor (patented)

0.16 – 43 Hz

Detections

1. Blink

2. Wink Left/Right

3. Look Left/Right

4. Furrow (frown)

5. Raise Brow (surprise)

6. Smile

7. Clench Teeth (grimace)

8. Laugh

9. Smirk Left/Right

1. Excitement

2. Long term excitement

3. Stress

4. Engagement

5. Relaxation

6. Interest/Affinity

7. Focus

Neutral + up to 4 pretrained items from a list of 13 labels:

Push

Pull

Lift

Drop

Left

Right

Rotate clockwise

Rotate anti-clockwise

Rotate forwards

Rotate backwards

Rotate left

Rotate right

Disappear

Configurable Options

Positioning of recording and reference sensors.

Motion configuration 32/64Hz

Position of Control Box (at Iz or Cz)

Flex 2

Technical Specifications

Up to 32 (+2 references)

Sensor Count

Configurable in any 10-20 location

Sensor Location

16 bits per channel

Resolution

0.1275µV (16 bits mode)

LSB Resolution

±4.17 mV (8400 µV pp)

Dynamic Range

Saline OR Ag/AgCl + Gel

Sensor Technology

9 axis sensor (4 quaternions, 3x accelerometer, 3x magnetometer)

Motion Sensor

BLE Dongle included

Proprietary USB receiver

Bluetooth® Low Energy

BT5.2 (BT6.3 hardware-ready)

USB-C (Bluetooth dongle, USB-A to USB-C adaptor included)

-

Connectivity

Up to 6 hours

Battery Life

CMS/DRL configurable in any 10-20 location or on ears (contains compatible ear clips for sensors – Gel model only)

Reference

2048 internal downsampled to 256 SPS

Sample Rate

Real-time CQ monitor (patented)

Contact Quality

Frequency Response

0.16 – 43 Hz

Detections

Facial Expressions

1. Blink

2. Wink Left/Right

3. Look Left/Right

4. Furrow (frown)

5. Raise Brow (surprise)

6. Smile

7. Clench Teeth (grimace)

8. Laugh

9. Smirk Left/Right

Emotional States

1. Excitement

2. Long term excitement

3. Stress

4. Engagement

5. Relaxation

6. Interest/Affinity

7. Focus

Mental Commandses

Neutral + up to 4 pretrained items from a list of 13 labels:

Push

Pull

Lift

Drop

Left

Right

Rotate clockwise

Rotate anti-clockwise

Rotate forwards

Rotate backwards

Rotate left

Rotate right

Disappear

Configurable Options

User Configurable Options:

Positioning of recording and reference sensors.

Motion configuration 32/64Hz

Position of Control Box (at Iz or Cz)
