Technical Specification
DESCRIPTION

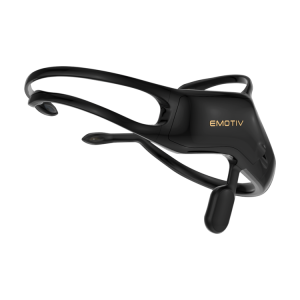

INSIGHT 2.0
EPOC+

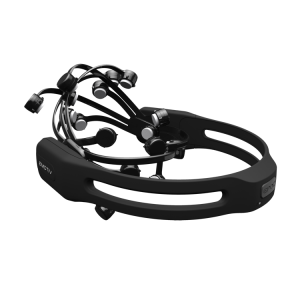

EPOC X

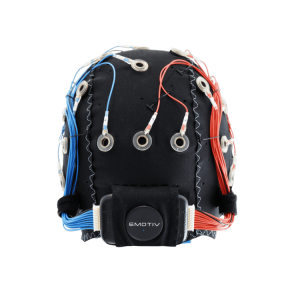

FLEX 2
MN8
Sensor Count
5 (+2 references)
14 (+2 references)
14 (+2 references)
Up to 32 (+2 references)
2 (+4 references)
Sensor Locations
AF3, AF4, T7, T8, Pz
AF3, AF4, F3, F4, FC5, FC6, F7, F8, T7, T8, P7, P8, O1, O2
AF3, AF4, F3, F4, FC5, FC6, F7, F8, T7, T8, P7, P8, O1, O2
Configurable in any 10-20 location
Left and Right Ear Canal
Resolution
16 bits per channel
14 bits or 16 bits per channel
14 bits or 16 bits per channel
16 bits per channel
14 bits per channel
LSB Resolution
0.1275µV (16 bits mode)
0.51µV (14 bits mode), 0.1275µV (16 bits mode)
(user configured)
0.51µV (14 bits mode), 0.1275µV (16 bits mode)
(user configured)
0.51μV
0.51µV
Dynamic Range
±4.17 mV
±4.17 mV
±4.17 mV
±4.17 mV
±4.17 mV
Sensor Technology
Long life semi-dry polymer
Saline soaked felt pads
Saline soaked felt pads
Saline OR Ag/AgCl + Gel
Dry non-toxic non-allergenic conductive elastomer earbud
Motion Sensor
9 axis sensor (4 quaternions, 3x accelerometer, 3x magnetometer)
9 axis sensor (4 quaternions, 3x accelerometer, 3x magnetometer)
9 axis sensor (4 quaternions, 3x accelerometer, 3x magnetometer)
9 axis sensor (4 quaternions, 3x accelerometer, 3x magnetometer)
6 axis sensor, 4 quaternions
Connectivity
–
Proprietary USB receiver (included): 2.4GHz band.
Proprietary USB receiver (included): 2.4GHz band.
Proprietary USB receiver (included): 2.4GHz band.
Bluetooth® Low Energy
Bluetooth® Low Energy
Bluetooth® Low Energy
Bluetooth® Low Energy
Bluetooth® Low Energy
BT5
BT5 Ready
BT5.2
Extender Support – future feature
USB 2.0 (with Extender)
USB 2.0 (with Extender) Support for EMOTIV Extender will be available with upcoming software and firmware updates.
USB-C (Bluetooth dongle, USB-A to USB-C adaptor included)
USB 2.0 (firmware updates and headset charging only)
Battery Life
Up to 20 hours
Up to 6 hours
Up to 9 hours
Up to 6 hours
Up to 6 hours
References
CMS/DRL references on left mastoid process
CMS/DRL references at P3/P4; left/right mastoid process alternative
CMS/DRL references at P3/P4; left/right mastoid process alternative
CMS/DRL configurable in any 10-20 location or on ears (contains compatible ear clips for sensors – Gel model only )
Averaging circuit using Split CMS, split DRL sensors on rear of ear flap (pinna)
Sample Rate
2048 internal downsampled to 128 SPS
2048 internal downsampled to 128 SPS or 256 SPS (user configured)
2048 internal downsampled to 128 SPS or 256 SPS (user configured)
2048 Hz internal downsampled to 256SPS
8kHz, filtered and down-sampled to 128Hz
Contact Quality
Realtime CQ monitor (patented)
Realtime CQ monitor (patented)
Realtime CQ monitor (patented)
Realtime CQ monitor (patented)
Realtime CQ monitor (patented)
Frequency Response
0.5 – 43 Hz
0.16 – 43 Hz
0.16 – 43 Hz
0.16 – 43Hz
0.16 – 45Hz
Detections
DESCRIPTION
INSIGHT 2.0
EPOC+
EPOC X
FLEX 2
MN8
Facial Expressions
Blink
Wink Left/Right
Furrow (frown)
Raise Brow (surprise)
Smile
Clench Teeth (grimace)
Blink
Wink Left/Right
Look Left/Right
Furrow (frown)
Raise Brow (surprise)
Smile
Clench Teeth (grimace)
Laugh
Smirk Left/Right
Blink
Wink Left/Right
Look Left/Right
Furrow (frown)
Raise Brow (surprise)
Smile
Clench Teeth (grimace)
Laugh
Smirk Left/Right
Blink
Wink Left/Right
Look Left/Right
Furrow (frown)
Raise Brow (surprise)
Smile
Clench Teeth (grimace)
Laugh
Smirk Left/Right
TBA
Emotional States
Excitement
Long term excitement
Stress
Engagement
Relaxation
Interest/Affinity
Focus
Excitement
Long term excitement
Frustration
Engagement
Relaxation
Interest/Affinity
Focus
Excitement
Long term excitement
Frustration
Engagement
Relaxation
Interest/Affinity
Focus
Excitement
Long term excitement
Frustration
Engagement
Relaxation
Interest/Affinity
Focus
Cognitive Stress
More to come…
Mental Commands
Neutral + up to 4 pretrained items from a list of 13 labels:
Push
Pull
Lift
Drop
Left
Right
Rotate clockwise
Rotate anti-clockwise
Rotate forwards
Rotate backwards
Rotate left
Rotate right
Disappear
Neutral + up to 4 pretrained items from a list of 13 labels:
Push
Pull
Lift
Drop
Left
Right
Rotate clockwise
Rotate anti-clockwise
Rotate forwards
Rotate backwards
Rotate left
Rotate right
Disappear
Neutral + up to 4 pretrained items from a list of 13 labels:
Push
Pull
Lift
Drop
Left
Right
Rotate clockwise
Rotate anti-clockwise
Rotate forwards
Rotate backwards
Rotate left
Rotate right
Disappear
Neutral + up to 4 pretrained items from a list of 13 labels:
Push
Pull
Lift
Drop
Left
Right
Rotate clockwise
Rotate anti-clockwise
Rotate forwards
Rotate backwards
Rotate left
Rotate right
Disappear
TBA
Configurable Options
DESCRIPTION
INSIGHT 2.0
EPOC+
EPOC X
FLEX 2
MN8
User Configurable Options
None
14 bits/16 bits voltage resolution
Enable/disable individual motion sensors (accelerometer, gyro, magnetometer)
14 bits/16 bits voltage resolution
Enable/disable individual motion sensors (accelerometer, gyro, magnetometer)
Positioning of recording and reference sensors
Position of Control Box (at Iz or Cz)
None
Prerequisites
DESCRIPTION
INSIGHT 2.0
EPOC+
EPOC X
FLEX 2
MN8
Supported Platforms
*Note: Also subject to software and SDK compatibility
Windows 10 (64-bit) v1607+
Mac OS X 10.13 and higher
iOS 12 or above (Beta release)
Android 7.0 Nougat (API level 24) or above (Beta release)
Windows 10 (64-bit) v1607+
Mac OS X 10.13 and higher
iOS 12 or above (Beta release)
Android 7.0 Nougat (API level 24) or above (Beta release)
Windows 10 (64-bit) v1607+
Mac OS X 10.13 and higher
iOS 12 or above (Beta release)
Android 7.0 Nougat (API level 24) or above (Beta release)
Windows 10 (64-bit) v1607+
Mac OS X 10.13 and higher
Windows 10 (64-bit) v1607+
Mac OS X 10.13 and higher Requires a USB-Bluetooth™ music streaming dongle, uses internal Bluetooth™ Low Energy receiver for EEG data
