Quick start guide

Download Launcher

macOS 10.13

High Siera 10.13
or above

Download Now


v1607 (64bit)
or above

Download Now

Ubuntu Beta

18.4 or above
(Beta release, 64-bit only)

Download Now

Rasperry Pi Beta

OS – Debian version 11
(Beta release, 32-bit)

Download Now

Unboxing your Insight

Remove the sleeve from the box. When you open the box, you will find the following:

Insight travel case illustration

Insight Travel Case

Insight illustration

Insight Headset

Sensors Pack

USB-C Charging Cable

Sensors Tip

Fluid Bottle

Hex Key

5 Dry-Sensor

Insight setup guide


Attach the rear arm to the headset

Attach the rear arm connector to the headset body. The connector should slide fully into the slot and the arm should be flushed with the body.

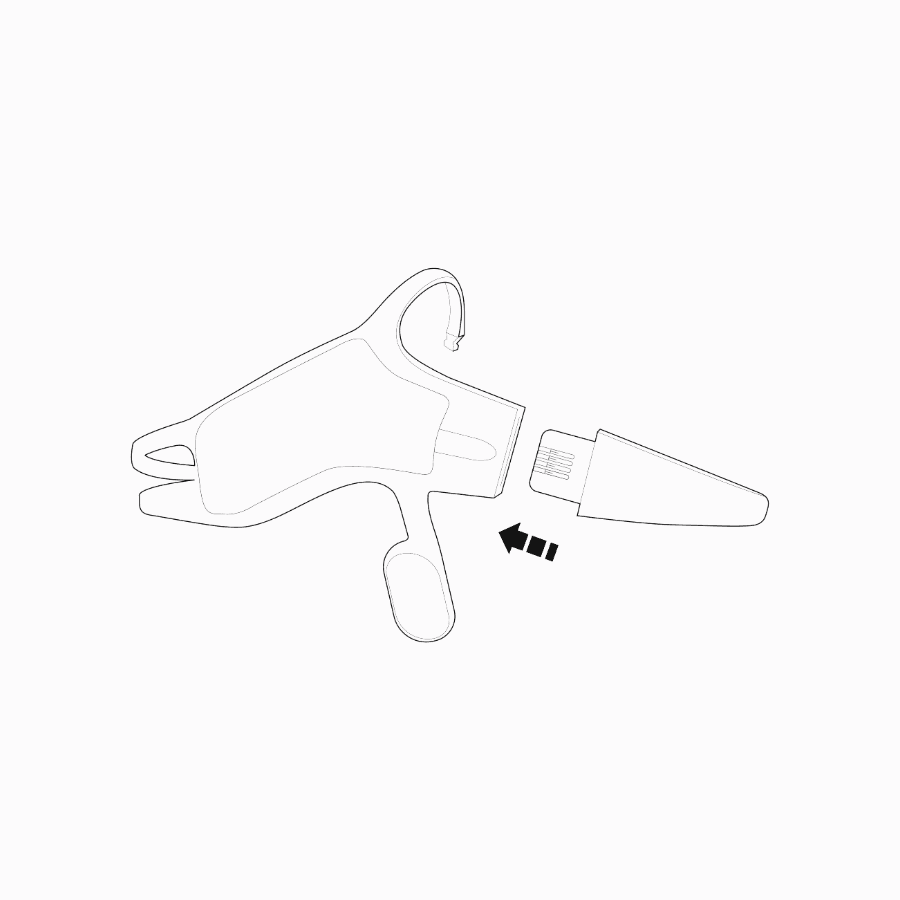

Insight setup guide insert and remove sensor tips


Attach the sensors to the headset

Attach a sensor to the end of each arm with the sensor pads facing inward. The sensors should snap in place and be flush with the arm.

Charging the Insight: Charge the Insight with the included cable. The Insight will attain full charge in about 2 hours.

Turning the Insight ON and OFF: The Insight’s ON/OFF button is above the charging port.

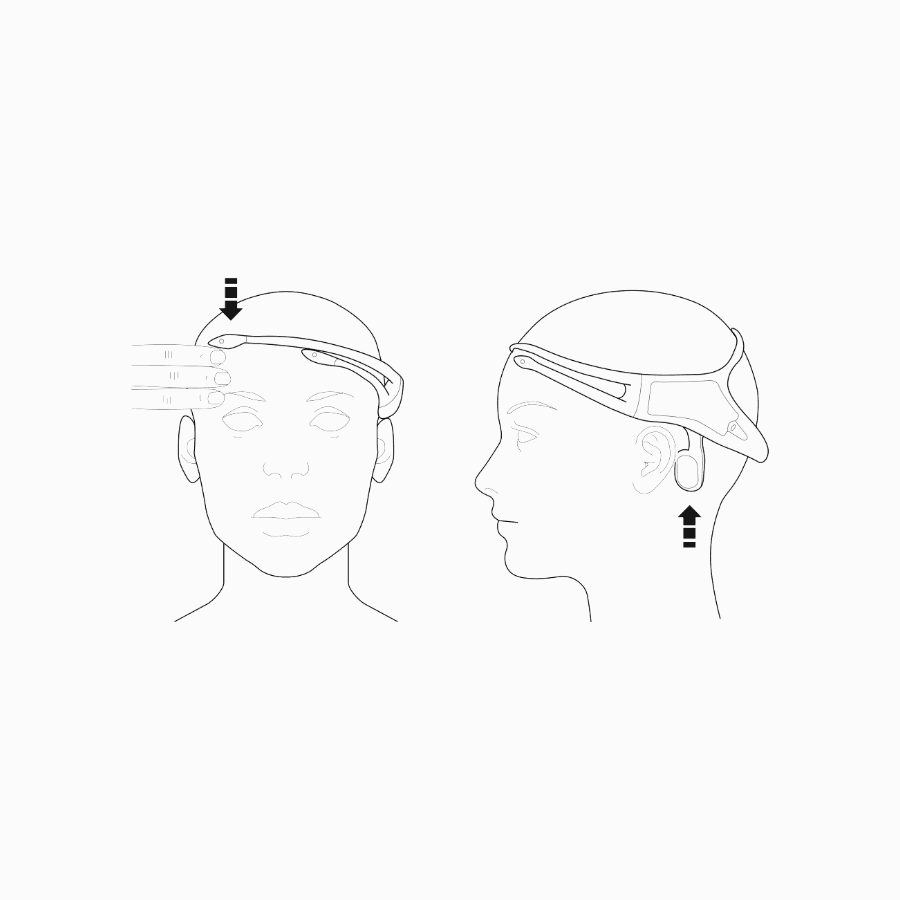

Insight setup guide how to wear illustration


Correctly position the headset

Position the reference sensors to touch the skin behind the ear. It is critical that the reference sensors make contact with the skin behind the ear. If necessary, gently bend the reference sensor arm so that the sensors make contact with the skin.

Frontal sensors should align above each eye and should be positioned about three finger widths above the eyebrows. If necessary, re-moisten the sensor pads with the re-hydration solution.

For more help regarding the usage of EMOTIV INSIGHT, please consult the manual or contact customer support.
