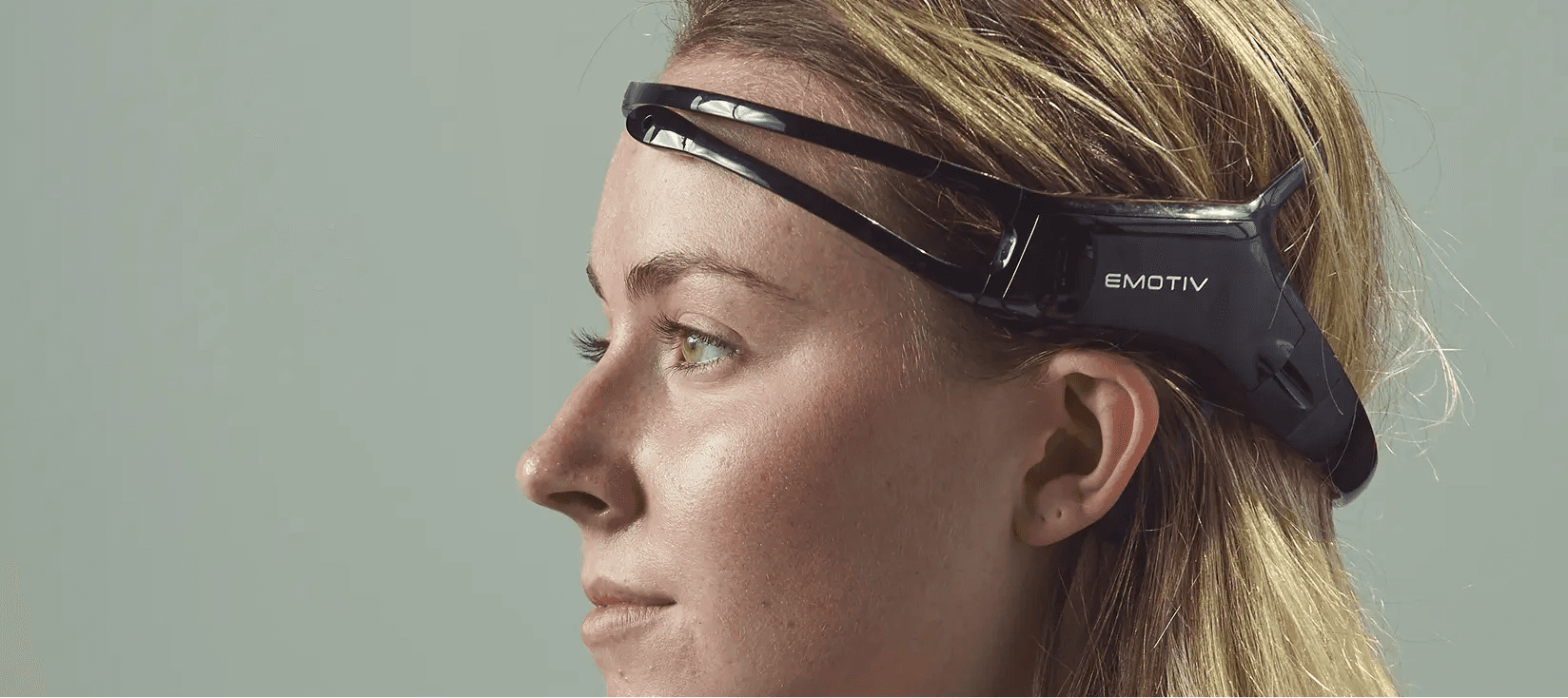

Engineered for Precision and Versatility
10-20 Sensor Configuration, including Pz
Semi-dry polymer sensors that easily penetrate through hair.
Democratizing Brain Research
Enables limitless research and diverse sample sets.
Connects Seamlessly with EMOTIV’s Applications
Efficient, real-time EEG data transmission.
Brain Control
Harnesses your brain activity for endless BCI opportunities.
Removes Interferences and Artifacts
Captures reproducible EEG data.

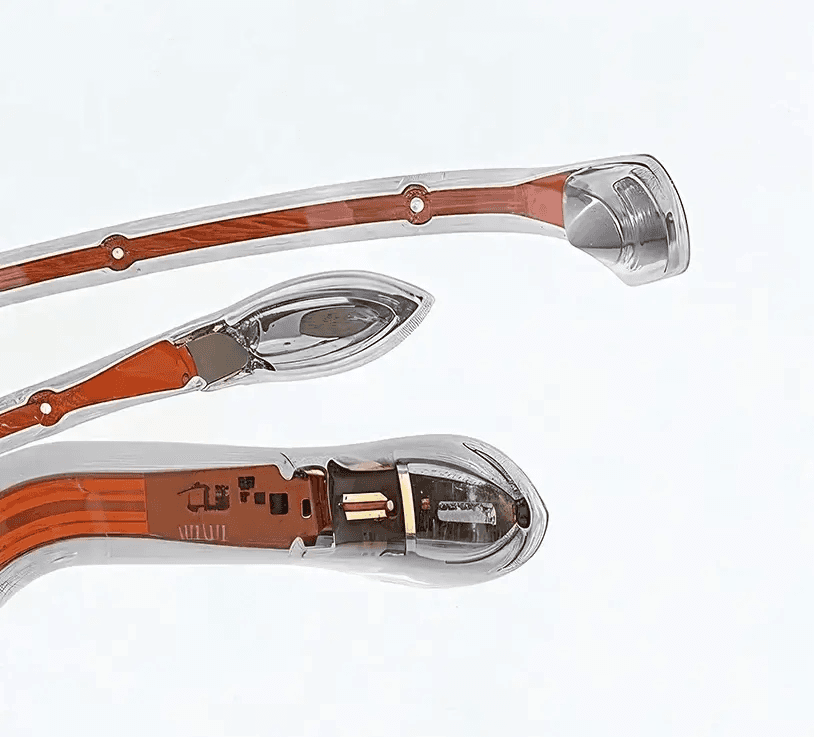

Revolutionary EEG Sensor Technology
Insight boasts EMOTIV’s proprietary polymer sensor technology. The hydrophilic material does not need gel to maintain conductivity with the skin*. Instead, the sensors draw moisture from the environment, making Insight our most versatile EEG headset without compromising conductivity.
*Minimal fluid may occasionally be needed.
Discover a New Dimension of Connectivity and Empowerment
Let your mind take the lead, and technology follow. Harness your brain activity to navigate a digital world hands-free, regain independence with assistive technology, or delve into mind-controlled applications. Connect your Insight to EMOTIV BCI, and turn science fiction into reality.
Full Specifications
EEG sensors
5 channels: AF3, AF4, T7, T8, Pz
2 references: CMS/DRL references on left mastoid process
New three prong gummy sensor: for better hair penetration on Pz
Sensor material: Hydrophilic semi-dry polymer
EEG signals
Sampling rate: 128 samples per second per channel
Resolution: 16 bits with 1 LSB = 0.1275μV
Frequency response: 0.5-43Hz, digital notch filters at 50Hz and 60Hz
Filtering: Built in digital 5th order Sinc filter
Dynamic range (input referred): 8400 μV(pp)
Coupling mode: AC coupled
Connectivity
Wireless: Bluetooth Low Energy – Improved radio connectivity, updated antenna with Bluetooth 5 support.
Motion Sensor
IMU part: ICM-20948
Accelerometer: 3-axis +/-8g
Gyroscope: 3-axis +/-2000 dps (converted to 4 normalised quaternions)
Magnetometer: 3-axis +/- 12 gauss
Sampling rate: 32 Hz
Resolution: 16 bits
Power
Battery: Internal Lithium Polymer battery 480mAh
Battery life: Improve battery life up to 20hrs on a single charge.
Detection
Mental commands: neutral + up to 4 pretrained items per training profile
Performance metrics: Excitement, Engagement, Relaxation, Interest, Stress, Focus
Facial Expressions: Blink, Wink L/R, Surprise, Frown, Smile, Clench
Develop with EMOTIV
Interested in developing an app with Insight?
Create personalized experiences and activations using real-time brain data with EMOTIV’s Software Development Kit.
Explore EMOTIV’s EEG Devices
5 sensors
Sensor Technology:
Semi-dry polymer
–
5.0 Ready
Good data quality
Sensor Location:
Fixed
Headband:
Fixed position
Set-up time:
1-2 mins
14 sensors
Sensor Technology:
Saline soaked felt
Refill Merchanism
5.0 Ready
Higher data quality
Sensor Location:
Fixed
Headband:
Rotating
Set-up time:
15-30 mins
32 sensors
Sensor Technology: Saline
Refill Merchanism
Version 4.0
Highest data quality
Sensor Location:
Configurable
–
Set-up time:
15-30 mins
32 sensors
Sensor Technology:
Gel
–
Version 4.0
Highest data quality
Sensor Location:
Configurable
–
Set-up time:
15-30 mins
2 sensors
Sensor Technology:
Dry non-toxic non-allergenic conductive elastomer
–
5.0 Ready
–
Sensor Location:
Fixed
–
Set-up time:
1 min
